    I don't know how to send a lot of data per time by BLE(Bluetooth low energy)

    FAQS
    2
    2
    5.1k
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      stackyarou
      last edited by

      Hi,
      I'd like to send IMU sensor data which is gotten by one M5Stack to the other. The other M5Stack is in a few meters from one.
      To achieve above, now I think use of BLE(Bluetooth Low Energy)(*1).
      I'll connect two M5Stacks and send the data as data packet.

      I know ESP32 which is in M5Stack enables use of Bluetooth 4.2(*2) and we can send 251 bytes(actually 246bytes because of consumption by some protocols) per time by Bluetooth 4.2(*3).
      I tried, but I can't as expected. I don't know why. The problems are below.

      ・In the case of send and receive over 20 bytes, M5Stack receive data which is over 20bytes as zero.
      ・I defined data type as uint8, so I expected 1byte per one param, but actually 4bytes per one param. Did I do something wrong?

      Environment
      Device: M5Stack GRAY
      IDE: Arduino IDE

      *1 I know also ESP-NOW, but if I can use BLE, I'd like to use BLE considering security.
      *2 https://www.espressif.com/sites/default/files/documentation/esp32_datasheet_en.pdf
      *3 https://www.bluetooth.com/

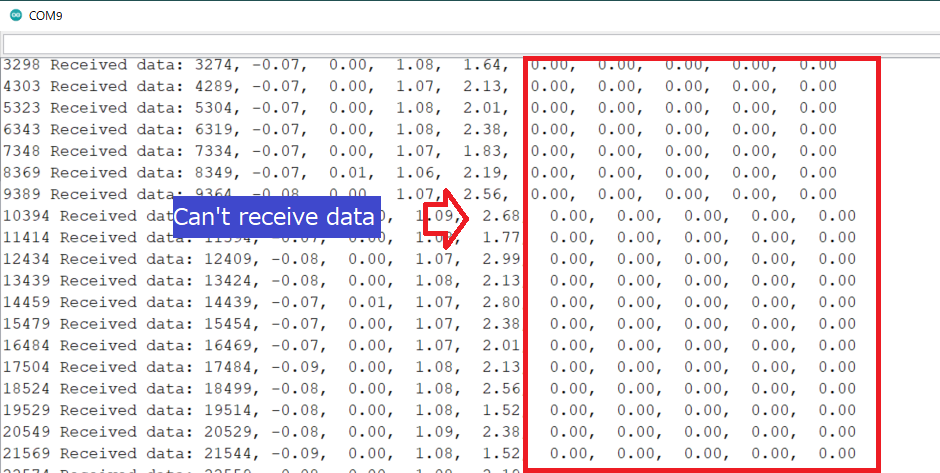

      Result

      Coder for Server

      #define M5STACK_MPU6886
      #include <M5Stack.h>
      #include <BLEDevice.h>
      #include <BLEServer.h>
      #include <BLE2902.h>

      /* device name */
      #define DEVICE_NAME "ESP32"

      /* UUID difinition */
      #define SERVICE_UUID           "28b0883b-7ec3-4b46-8f64-8559ae036e4e"  // service UUID
      #define CHARACTERISTIC_UUID_TX "2049779d-88a9-403a-9c59-c7df79e1dd7c"  // UUID for send

      /* for control connection */
      BLECharacteristic *pCharacteristicTX;   // characteristic for send
      bool  deviceConnected = false;          // device connection status
      bool  bAbnormal  = false;               // to call abnormal

      /* connection data */
      struct tmpData {
        int   time_get;
        int   accX_send;
        int   accY_send;
        int   accZ_send;
        int   gyroX_send;
        int   gyroY_send;
        int   gyroZ_send;
        int   pitch_send;
        int   roll_send;
        int   yaw_send;
      };

      struct tmpData  data;

      /* IMU 9 params definition */
      float accX = 0.0F;
      float accY = 0.0F;
      float accZ = 0.0F;

      float gyroX = 0.0F;
      float gyroY = 0.0F;
      float gyroZ = 0.0F;

      float pitch = 0.0F;
      float roll  = 0.0F;
      float yaw   = 0.0F;

      /* get time */
      int time_get;

      /* Callback when conncet and break */
      class funcServerCallbacks: public BLEServerCallbacks {
          void onConnect(BLEServer* pServer) {
            deviceConnected = true;
          }
          void onDisconnect(BLEServer* pServer) {
            deviceConnected = false;
          }
      };

      /* make characteristic for Notify */
      void doPrepare(BLEService * pService) {
        pCharacteristicTX = pService->createCharacteristic(
                              CHARACTERISTIC_UUID_TX,
                              BLECharacteristic::PROPERTY_NOTIFY
                            );
        pCharacteristicTX->addDescriptor(new BLE2902());
      }

      // Function for send data
      void sendData() {
        if (isnan(accX) || isnan(accY) || isnan(accZ)) {
          Serial.println("Failed to read sensor!");
          return;
        }
        // set value to struct and send
        data.time_get = time_get;
        data.accX_send = (int)(accX * 100);
        data.accY_send = (int)(accY * 100);
        data.accZ_send = (int)(accZ * 100);
        data.gyroX_send = (int)(gyroX * 100);
        data.gyroY_send = (int)(gyroY * 100);
        data.gyroZ_send = (int)(gyroZ * 100);
        data.pitch_send = (int)(pitch * 100);
        data.roll_send = (int)(roll * 100);
        data.yaw_send = (int)(yaw * 100);
        pCharacteristicTX->setValue((uint8_t*)&data, sizeof(tmpData));
        pCharacteristicTX->notify();

        delay(5);
      }

      void setup() {
        M5.begin(); //Init M5Stack.
        M5.Power.begin(); //Init power.
        M5.Lcd.fillScreen(BLACK);
        M5.Lcd.setTextSize(3);

        M5.IMU.Init();
        BLEDevice::init(DEVICE_NAME);

        // make service object and set Callback
        BLEServer *pServer = BLEDevice::createServer();
        pServer->setCallbacks(new funcServerCallbacks());

        // make service object and prepare(make characteristic for Notify)
        BLEService *pService = pServer->createService(SERVICE_UUID);
        doPrepare(pService);

        // start service and advertise
        pService->start();
        BLEAdvertising *pAdvertising = pServer->getAdvertising();
        pAdvertising->addServiceUUID(SERVICE_UUID);
        pAdvertising->start();

      }

      void loop() {
        M5.IMU.getAccelData(&accX, &accY, &accZ);
        M5.IMU.getGyroData(&gyroX, &gyroY, &gyroZ);
        M5.IMU.getAhrsData(&pitch, &roll, &yaw);
        time_get = millis();

        delay(5);
        // set data and send
        sendData();
        delay(1000);
      }


      Code for Cliant

      #include <M5Stack.h>
      #include <BLEDevice.h>
      #include <Wire.h>                   // For I2C interface

      /* UUID difinition */
      BLEUUID serviceUUID("28b0883b-7ec3-4b46-8f64-8559ae036e4e");   // service UUID
      BLEUUID CHARA_UUID_RX("2049779d-88a9-403a-9c59-c7df79e1dd7c"); // UUID of RX

      /* for control connection */
      BLERemoteCharacteristic* pRemoteCharacteristicRX;  // Characteristic for receive
      BLEAdvertisedDevice* targetDevice;      // target BLE device
      bool  doConnect = false;                // connection cue
      bool  doScan = false;                   // scan cue
      bool  deviceConnected = false;          // connection status of device
      bool  bInAlarm  = false;
      bool  enableMeasurement = false;

      /* connection data */
      struct tmpData {
        int   time_get_rcv;
        int   accX_rcv;
        int   accY_rcv;
        int   accZ_rcv;
        int   gyroX_rcv;
        int   gyroY_rcv;
        int   gyroZ_rcv;
        int   pitch_rcv;
        int   roll_rcv;
        int   yaw_rcv;
      };
      struct tmpData  data;

      char* time_get_rcv;
      char* accX_rcv;
      char* accY_rcv;
      char* accZ_rcv;
      char* gyroX_rcv;
      char* gyroY_rcv;
      char* gyroZ_rcv;
      char* pitch_rcv;
      char* roll_rcv;
      char* yaw_rcv;

      /*********************< Callback classes and functions >**********************/
      /* Callback when connect and break */
      class funcClientCallbacks: public BLEClientCallbacks {
          void onConnect(BLEClient* pClient) {
          };
          void onDisconnect(BLEClient* pClient) {
            deviceConnected = false;
          }
      };

      /* Callback when receive advertising */
      class advertisedDeviceCallbacks: public BLEAdvertisedDeviceCallbacks {
          void onResult(BLEAdvertisedDevice advertisedDevice) {
            Serial.print("Advertised Device found: ");
            Serial.println(advertisedDevice.toString().c_str());

            /* stop scan and prepare connect if target BLE device*/
            if (advertisedDevice.haveServiceUUID()) {
              BLEUUID service = advertisedDevice.getServiceUUID();
              Serial.print("Have ServiceUUI: "); Serial.println(service.toString().c_str());
              if (service.equals(serviceUUID)) {
                BLEDevice::getScan()->stop();
                targetDevice = new BLEAdvertisedDevice(advertisedDevice);
                doConnect = doScan = true;
              }
            }
          }
      };

      /* Callback Function of Notify */
      static void notifyCallback(BLERemoteCharacteristic* pBLERemoteCharacteristic,
                                 uint8_t* pData, size_t length, bool isNotify) {
          M5.Lcd.setCursor(0, 20);
          M5.Lcd.print("Received");

        memcpy(&data, pData, length);
        int tm = data.time_get_rcv;
        float xx = data.accX_rcv / 100.00;
        float yy = data.accY_rcv / 100.00;
        float zz = data.accZ_rcv / 100.00;
        float gx = data.gyroX_rcv / 100.00;
        float gy = data.gyroY_rcv / 100.00;
        float gz = data.gyroZ_rcv / 100.00;
        float pc = data.pitch_rcv / 100.00;
        float rl = data.roll_rcv / 100.00;
        float yw = data.yaw_rcv / 100.00;

        static char time_get_rcv_char[10];
        static char accX_rcv_char[10];
        static char accY_rcv_char[10];
        static char accZ_rcv_char[10];
        static char gyroX_rcv_char[10];
        static char gyroY_rcv_char[10];
        static char gyroZ_rcv_char[10];
        static char pitch_rcv_char[10];
        static char roll_rcv_char[10];
        static char yaw_rcv_char[10];

        sprintf(time_get_rcv_char, "%d", tm);
        sprintf(accX_rcv_char, "%5.2f", xx);
        sprintf(accY_rcv_char, "%5.2f", yy);
        sprintf(accZ_rcv_char, "%5.2f", zz);
        sprintf(gyroX_rcv_char, "%5.2f", gx);
        sprintf(gyroY_rcv_char, "%5.2f", gy);
        sprintf(gyroZ_rcv_char, "%5.2f", gz);
        sprintf(pitch_rcv_char, "%5.2f", pc);
        sprintf(roll_rcv_char, "%5.2f", rl);
        sprintf(yaw_rcv_char, "%5.2f", yw);

        time_get_rcv = (char*)time_get_rcv_char;
        accX_rcv = (char*)accX_rcv_char;
        accY_rcv = (char*)accY_rcv_char;
        accZ_rcv = (char*)accZ_rcv_char;
        gyroX_rcv = (char*)gyroX_rcv_char;
        gyroY_rcv = (char*)gyroY_rcv_char;
        gyroZ_rcv = (char*)gyroZ_rcv_char;
        pitch_rcv = (char*)pitch_rcv_char;
        roll_rcv = (char*)roll_rcv_char;
        yaw_rcv = (char*)yaw_rcv_char;

        enableMeasurement = true;
        Serial.print( millis() );
        Serial.print(" ");
        Serial.print("Received data: ");
        Serial.print(time_get_rcv);
        Serial.print(", ");
        Serial.print(accX_rcv);
        Serial.print(", ");
        Serial.print(accY_rcv);
        Serial.print(", ");
        Serial.print(accZ_rcv);
        Serial.print(", ");
        Serial.print(gyroX_rcv);
        Serial.print(", ");
        Serial.print(gyroY_rcv);
        Serial.print(", ");
        Serial.print(gyroZ_rcv);
        Serial.print(", ");
        Serial.print(pitch_rcv);
        Serial.print(", ");
        Serial.print(roll_rcv);
        Serial.print(", ");
        Serial.println(yaw_rcv);

        return;
      }

      /*****************************************************************************
                                  Predetermined Sequence
       *****************************************************************************/
      void setup() {
        M5.begin();
        M5.Power.begin(); //Init power.
        M5.Lcd.fillScreen(BLACK);
        M5.Lcd.setTextSize(3);

        BLEDevice::init("");
        Serial.println("Client application start...");

        // get Scan object and set Callback
        BLEScan* pBLEScan = BLEDevice::getScan();
        pBLEScan->setAdvertisedDeviceCallbacks(new advertisedDeviceCallbacks());
        // scan 10 seconds
        pBLEScan->setActiveScan(true);
        pBLEScan->start(10);
      }

      void loop() {
        // Connect Server once when receive Advertising
        if (doConnect == true) {
          if (doPrepare()) {
            Serial.println("Connected to the BLE Server.");
          } else {
            Serial.println("Failed to connect to the BLE server.");
          }
          doConnect = false;
        }
        // If Connecting
        if (deviceConnected) {
          if (enableMeasurement && !bInAlarm) {
            enableMeasurement = false;
          }

        } else if (doScan) {
          BLEDevice::getScan()->start(0);
        }
      }

      /*  prepare  */
      bool doPrepare() {
        /* make cliant object and set Callback */
        BLEClient* pClient = BLEDevice::createClient();
        pClient->setClientCallbacks(new funcClientCallbacks());
        Serial.println(" - Created client.");

        /* connect remote BLE server */
        pClient->connect(targetDevice);
        Serial.println(" - Connected to server.");

        /* get reference to server */
        BLERemoteService* pRemoteService = pClient->getService(serviceUUID);
        if (pRemoteService == nullptr) {
          Serial.print("Failed to find serviceUUID: ");
          Serial.println(serviceUUID.toString().c_str());
          pClient->disconnect();
          return false;
        }
        Serial.println(" - Found target service.");

        /* get reference to characteristic */
        pRemoteCharacteristicRX = pRemoteService->getCharacteristic(CHARA_UUID_RX);
        if (pRemoteCharacteristicRX == nullptr) {
          Serial.print("Failed to find characteristicUUID: ");
          Serial.println(CHARA_UUID_RX.toString().c_str());
          pClient->disconnect();
          return false;
        }
        Serial.println(" - Found characteristic CHARA_UUID_RX.");

        /* assign callback functon for Notify */
        if (pRemoteCharacteristicRX->canNotify()) {
          pRemoteCharacteristicRX->registerForNotify(notifyCallback);
          Serial.println(" - Registered notify callback function.");
        }

        deviceConnected = true;
        return true;
      }

      1 Reply Last reply Reply Quote 0
      • felmueF
        felmue
        last edited by

        Hello @stackyarou

        it looks like the limiting factor is the MTU which by default is set to 23 bytes. I've tried to set a higher MTU on both sides using BLEDevice::setMTU(40);, but it did not help. I read somewhere that 23 bytes is the maximum for BLE 4.2 so maybe that is the reason?

        Thanks
        Felix

        GPIO translation table M5Stack / M5Core2
        Information about various M5Stack products.
        Code examples

        1 Reply Last reply Reply Quote 0
